Lithium Battery 5.1kw Dyna Global with 10 years life 48V battery

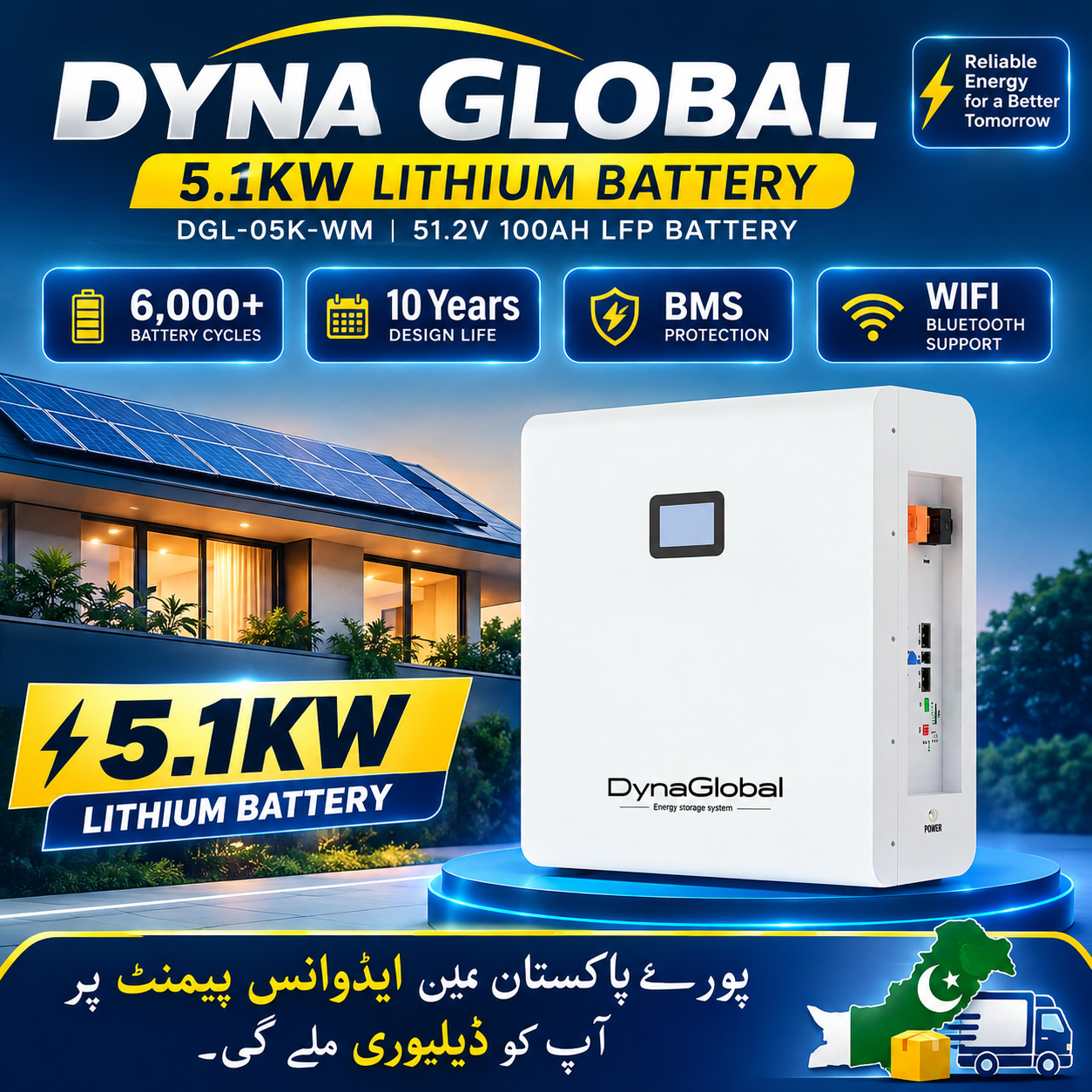

Dyna Global DGL-05K-WM is a powerful and reliable 5.12kWh Lithium Iron Phosphate (LiFePO4) battery designed for solar systems, home energy storage, backup power and compatible inverter systems. With advanced BMS protection, WiFi & Bluetooth communication and 6,000+ cycle life, this battery provides efficient, safe and long-lasting energy storage.

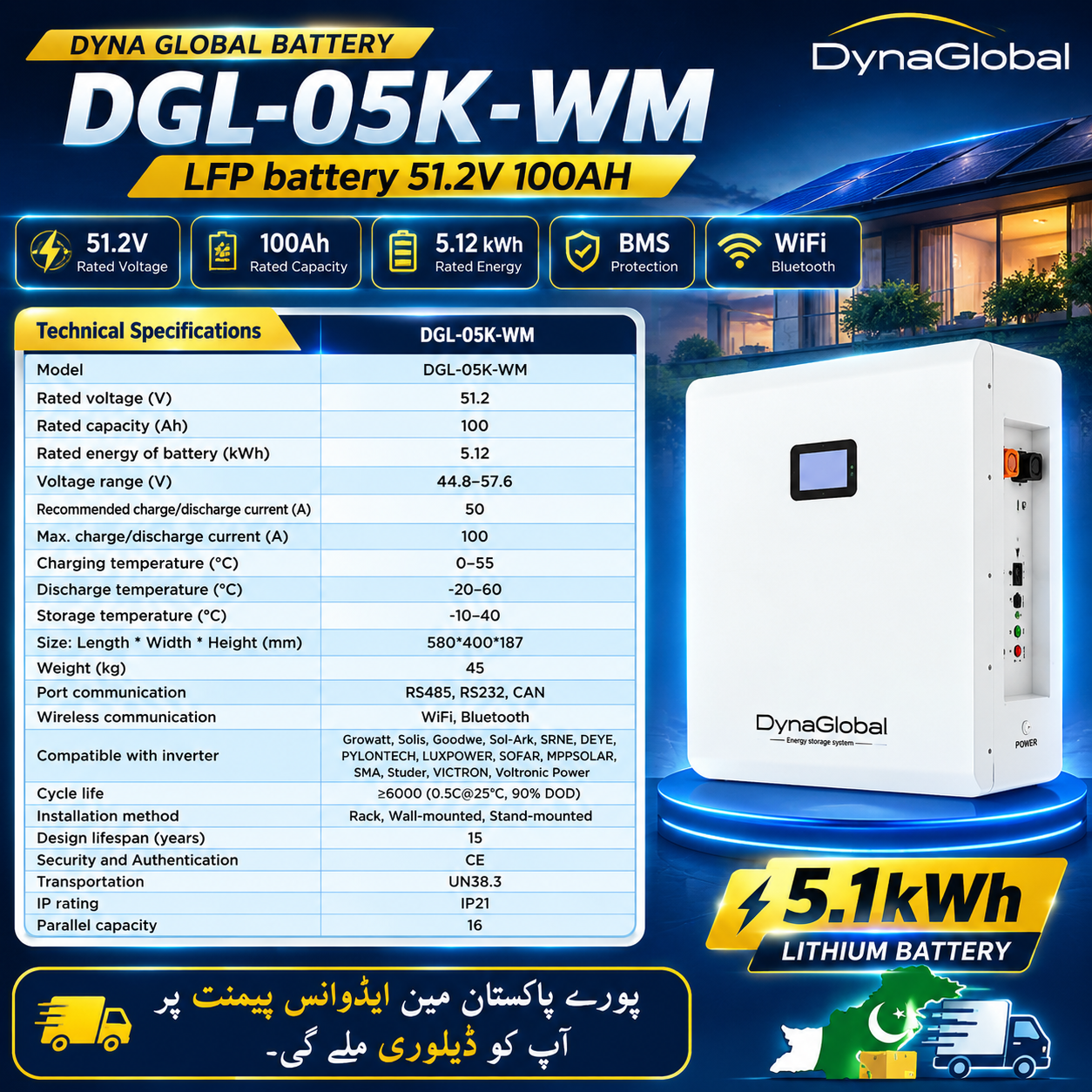

Technical Specifications:

Model: DGL-05K-WM

Battery Type: Lithium Iron Phosphate (LiFePO4 / LFP)

Rated Voltage: 51.2V

Rated Capacity: 100Ah

Rated Energy: 5.12kWh

Voltage Range: 44.8V–57.6V

Recommended Charge/Discharge Current: 50A

Maximum Charge/Discharge Current: 100A

Charging Temperature: 0°C–55°C

Discharging Temperature: -20°C–60°C

Storage Temperature: -10°C–40°C

Dimensions (L × W × H): 580 × 400 × 187 mm

Weight: 45 kg

Port Communication: RS485, RS232, CAN

Wireless Communication: WiFi & Bluetooth

Battery Cycle Life: 6,000+ cycles (0.5C @ 25°C, 90% DOD)

Design Lifespan: 15 years

Installation Method: Rack, Wall-mounted & Stand-mounted

Safety & Authentication: CE

Transportation Certification: UN38.3

IP Rating: IP56

Parallel Capacity: Up to 16 batteries
