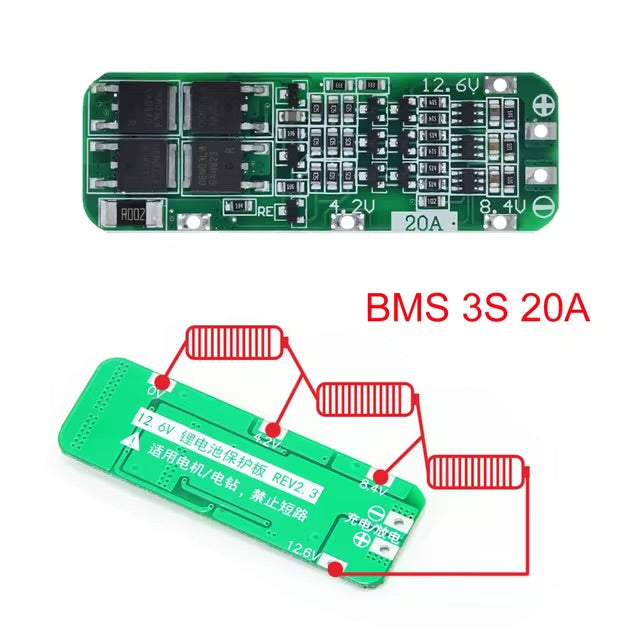

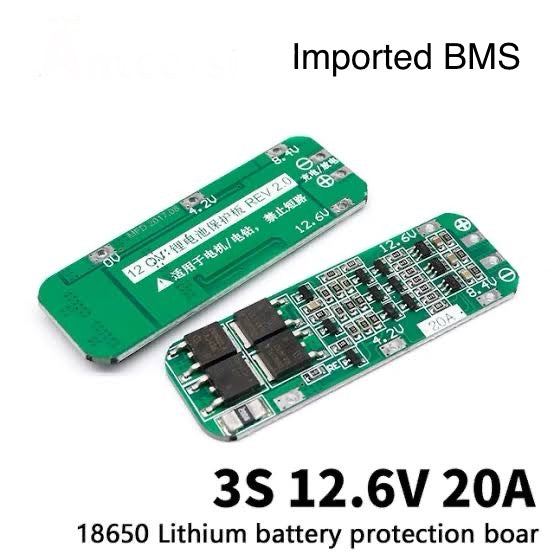

BMS 3S 12.6V BMS - Lithium Battery 3S 12V 10A Charge Protection Board BMS

BMS 3S 12.6V BMS - Lithium Battery 3S 12V 10A Charge Protection Board BMS

Rs.199.00 PKR
Rs.450.00 PKR Rs.199.00 PKR
Sale Sold out
Shipping calculated at checkout.



  • Model: 3S 10A BMS
  • Size: 50 * 16 * 1.0mm
  • Short circuit protection: protection, self-recovery delay.
  • Input voltage: 12.6V
  • Over-charge voltage range: 4.25-4.35v  0.05v
  • Over-discharge voltage range: 2.3-3.0v  0.05v
  • Maximum operating current: 5-8A
  • Overload voltage range: 4.25-4.35 v 0.05 v
  • Overpressure voltage range: 2.3-3.0 v 0.05 v
  • Maximum instantaneous current: 9-10A
  • Operating temperature: -40 — +50
  • Storage conditions: -40 — +80
  • Quiescent current: less than 6uA
  • Internal resistance: less than 60m
