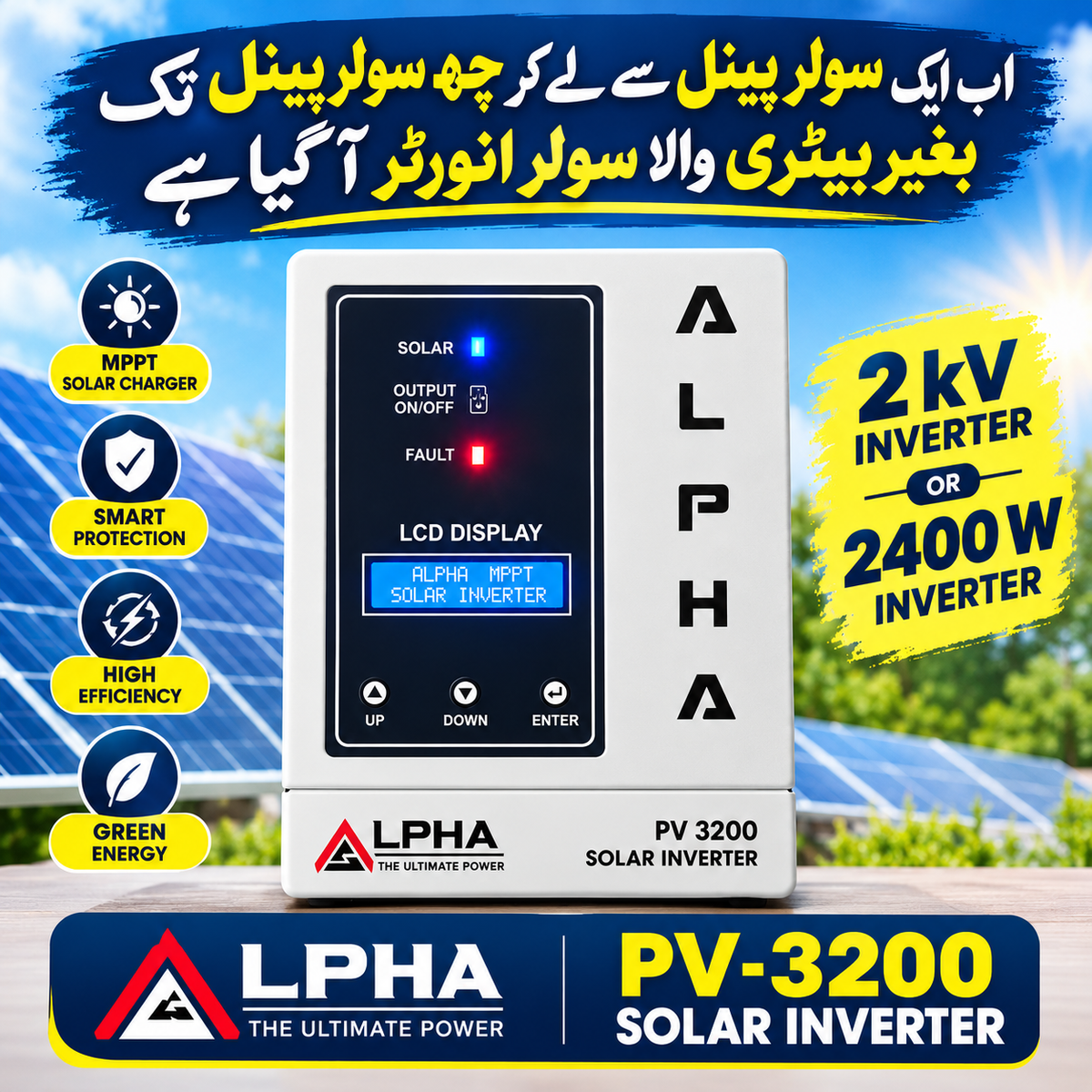

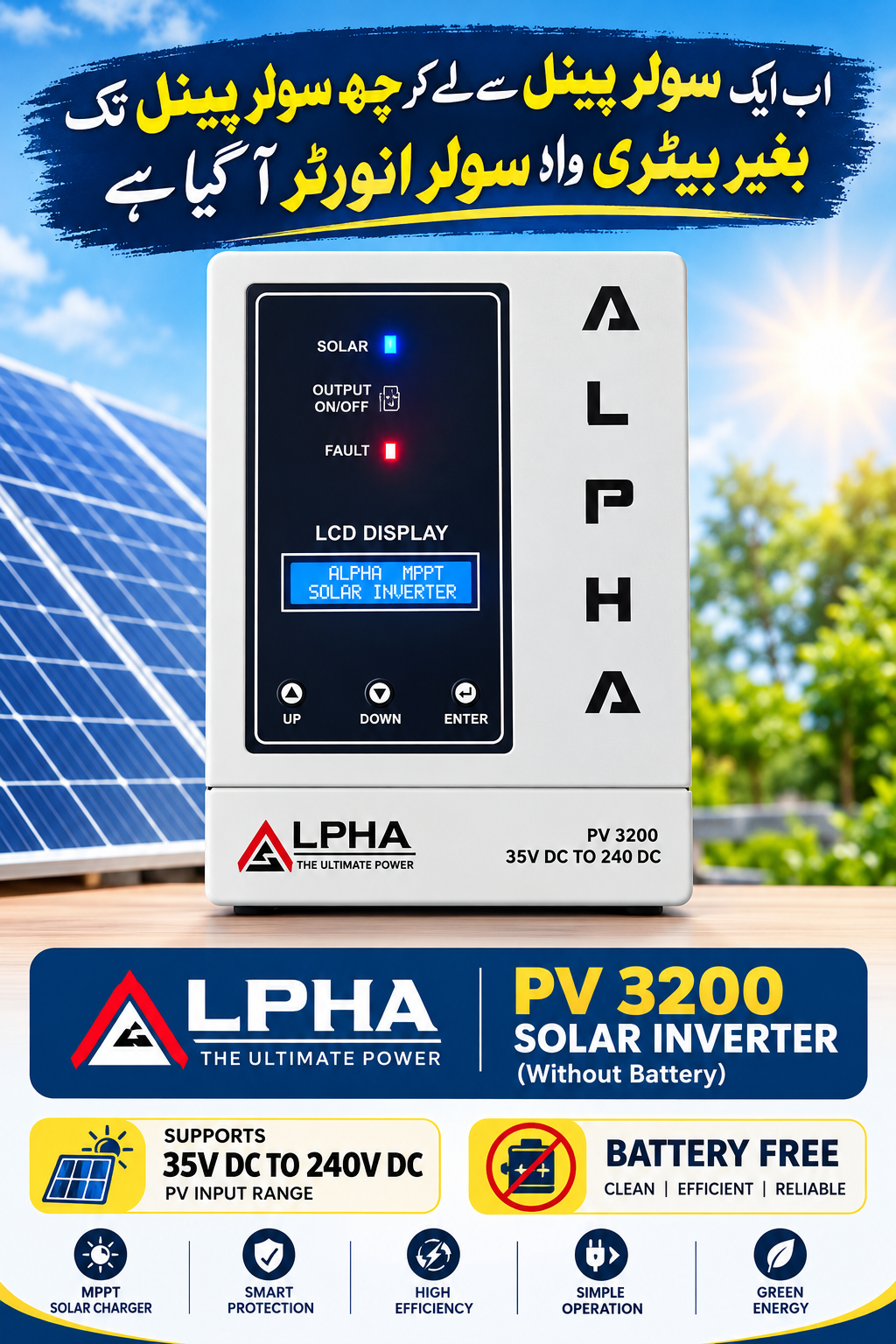

Alpha Inverter Pv 3200 2.2kw without battery

Pv 3200 Alpha Mppt Inverter 2400W best for small family

نوٹ کیش آن ڈلیوری پر 1000 اڈوانس لازمی ہے

DAY TIME INVERTER

ALPHA – THE ULTIMATE POWER

SOLAR INVERTER

PV 3200

35V DC TO 240 DC

Specs Sheet

Mode #: (AP-PV3200)

MPPT Algorithm: Prametric Intelligent Tracking

Protection Mode: Thermal, Over Voltage, Short Circuit, Over Load

Min Solar Voltages: 35V-DC

Max Solar Voltages: 240V-DC

Max Output Current: 12 Amp Peak

Continues Output Current: 10 Amp

Output Voltage: 220VAC ±5%

Waveform Type: Modified Sine Wave

Output Frequency: 50 Hz ±0.5 Hz

Max Continues Power: 2200 Watts

Surge Power: 3200W

Thermal Protection: 85 C

Thermal Protection: Thermal shutdown

Conversion Efficiency: 95% Typical at 40°C

Operating Temperature: 10°C to +55°C

Output Short Circuit: Pulseby-Pulse Current Limiting

Cooling Method: Temperature Controlled Fan

MENU SETTINGS

Buzzer ON/OFF

SET OUTPUT AC VOLTS

SET OUTPUT MINIMUM AC VOLTS

SET OUTPUT MAXIMUM POWER

Alpha Electronics Pakistan
