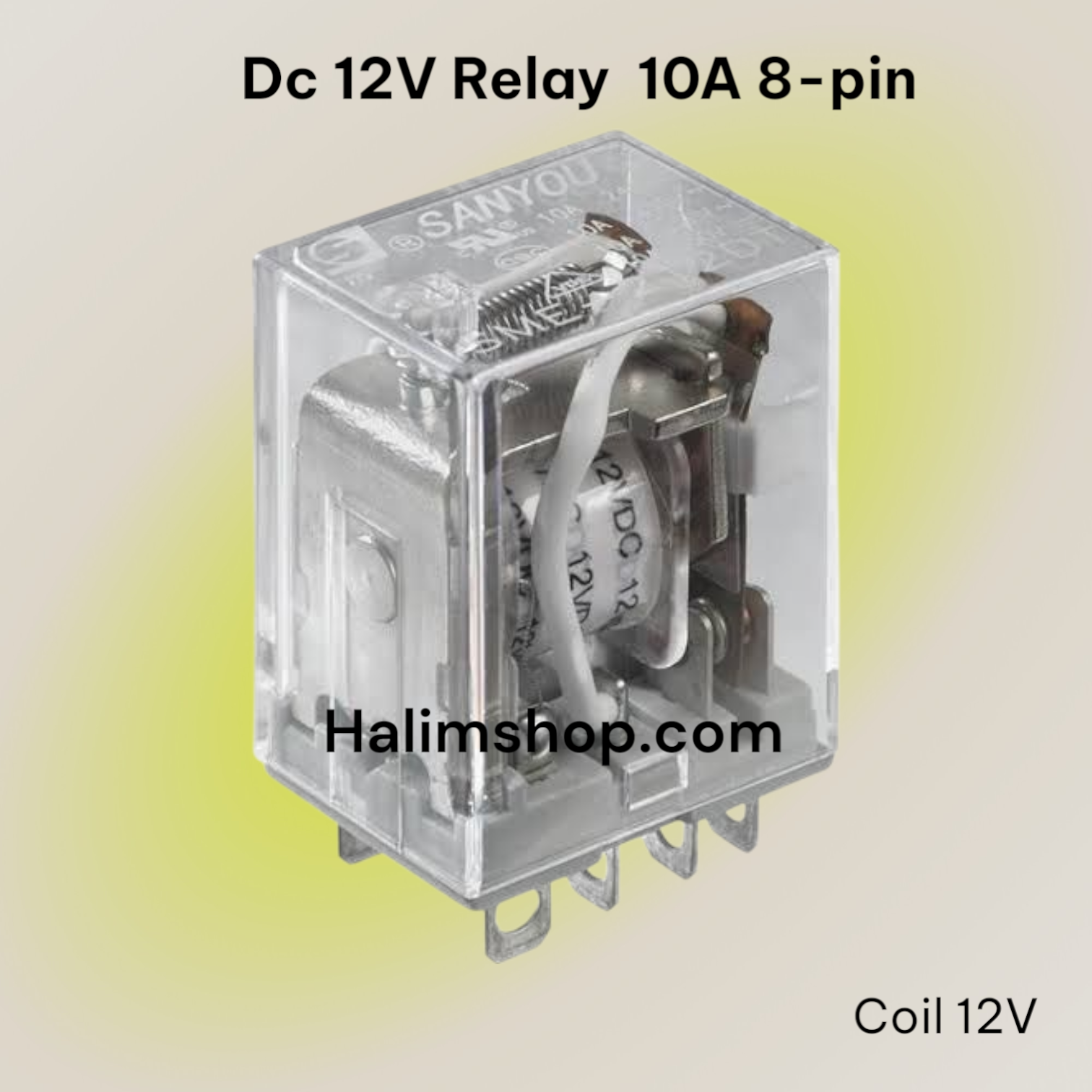

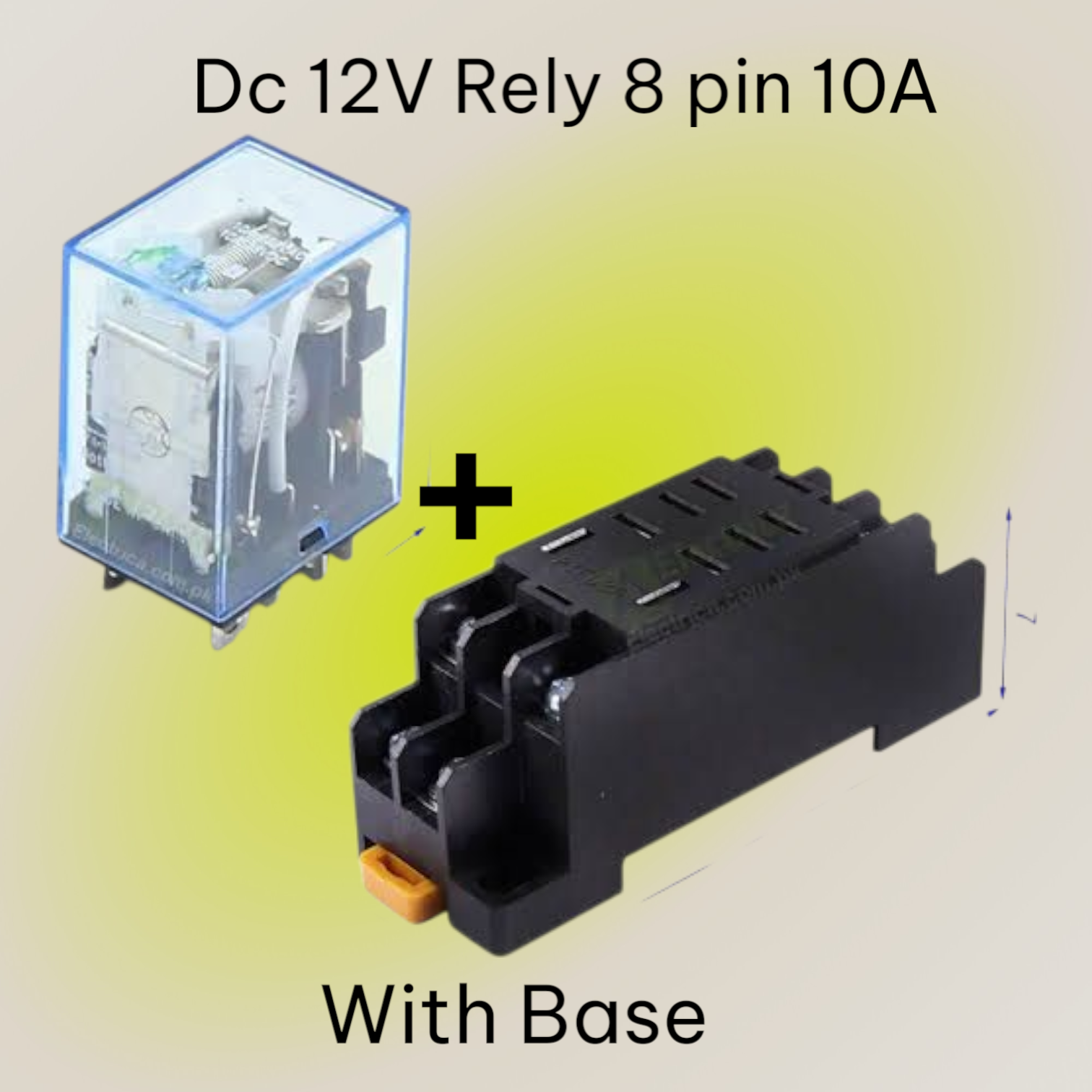

12VDC 8 Pin Relay 10A LY2N

Rs.399.00 PKR

~~Rs.550.00 PKR~~ Rs.399.00 PKR

Sale Sold out

Shipping calculated at checkout.

Quantity

Omron Relay 12VDC 8 Pin LY2N DC12 Technical Specifications:

نوٹ

پارسل وصول نہ کرنے کی صورت میں دونوں سائڈ کی ڈیلوری ادا کرنے کی آپ پابند ہونگے اگر یہ پالیسی آپکو قبول ہے تو آرڈر کرو ورنہ مت کرو ہمیں نقصان میں مت ڈالو شکریہ

ہو سکے تو ڈیلوری چارجز ہمیں پہلے بیٹھ دیں یا پورہ پیمنٹ اڈوانس کریں 03464712989

Degree of protection	Closed type (cover)
Terminal structure	Plug-in terminal
Operating indicator	LED
Coil ratings	12 VDC 75 mA
Coil resistance	160 Ω
Operate voltage (Set voltage)	80 % max.
Release voltage (Reset voltage)	10% min.
Coil Maximum voltage	110 %
Power consumption	Approx. 0.9 W
Coil Contact rated load	110 VAC 10 A (Resistive load) 110 VAC 7.5 A (Inductive load (cosφ = 0.4)) 24 VDC 10 A (Resistive load) 24 VDC 5 A (Inductive load (L/R = 7 ms))
Max. contact voltage	250 VAC 125 VDC
Max. Contact Current	AC: 10 A DC: 10 A
Contact form	DPDT
Contact method	Single
Contact resistance	50 mΩ max. (Voltage drop method with 5 VDC 1 A)
Contact material	Ag alloy
Operating time	25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time	25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency	Mechanical: 18000 time/h Rated load: 1800 time/h
Insulation resistance	Between coil and contacts: 100 MΩ min. (at 500 VDC) Between contacts of same polarity: 100 MΩ min. (at 500 VDC) Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Ambient temperature (Operating)	-25 to 40 ℃ (with no freezing or condensation)
Ambient humidity (Operating)	5 to 85% RH
Mounting method	Socket
Weight	Approx. 40 g
